Seafloor 801 D

SEAFLOOR 801 D

DESCRIPTION

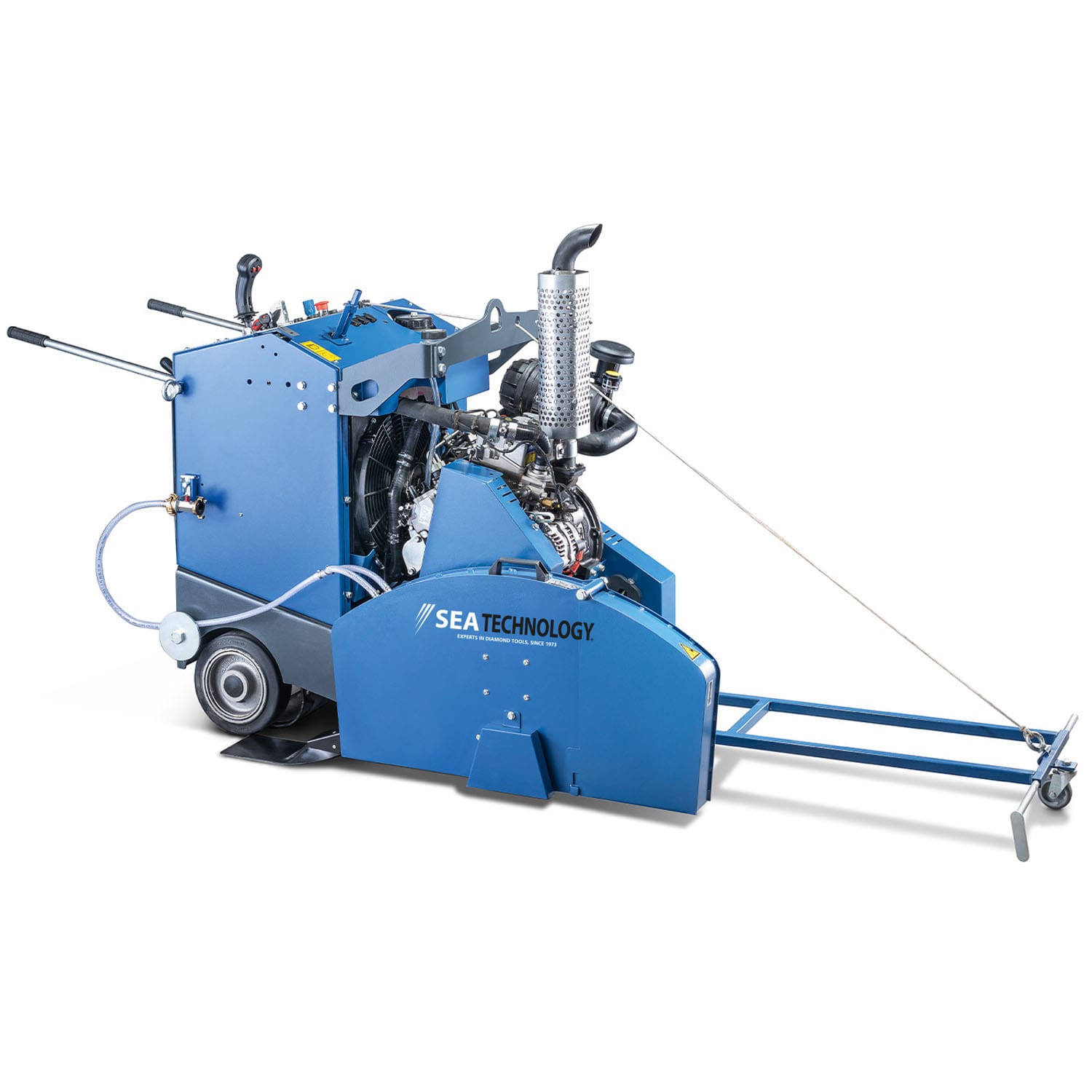

SEAFLOOR 801D is the joint cutter created for extremely demanding working conditions, where the machine impresses with its power and compactness. Equipped with a 3-cylinder Perkins diesel engine, it develops 18.4 kW/25 HP and a high torque thanks to which it can mount blades up to 1000 mm in diameter. It is able to reach cutting depths up to 415 mm. This machine has a hydrostatic traction and a low barycenter, elements that always ensure a fast and precise cut. The wheel guard can be tilted upwards to make intersections and there is the possibility of making the cut both to the right and to the left by rapidly moving the blade.

TECHNICAL SPECIFICATIONS
DESCRIPTION
Diamond blade ø 1000 mm bore 25.4 mm Possibility of mounting the blade on the left and right
Cutting depth 415 mm Dimensions (WxDxH) 1300x840x1690 mm
3-cylinder Perkins diesel engine 18.4 kW/ 25 HP Weight 458kg
Electric advancement and depth adjustment In compliance with CE norms
CODE DESCRIPTION
SEAFLOOR801D PROFESSIONAL JOINT CUTTER SEAFLOOR801 DIESEL
SF800D1080928 WHEEL GUARD Ø 1000
